How to Identify ECM Fault Codes and What They Mean

In today’s diesel-powered fleet industry, the Engine Control Module (ECM) plays a vital role in monitoring and controlling nearly every aspect of a truck’s engine performance. From fuel injection to emissions regulation, the ECM is your truck’s brain, responsible for ensuring optimal performance, efficiency, and safety. But when something goes wrong, it can communicate the issue with a fault code.

If you’re part of the American Fleet Service team in Portsmouth, VA, or a fleet manager looking to troubleshoot issues quickly, understanding ECM fault codes can save time, and money, and prevent extensive repairs down the road. Let’s dive into how to identify ECM fault codes and decipher what they mean.

What Is an ECM Fault Code?

An ECM fault code is a code generated by the ECM when it detects an abnormality or problem in the engine or other connected systems. These codes can cover a wide range of issues—from sensor malfunctions to emission control problems and even mechanical failures.

Where Do You Find ECM Fault Codes?

Typically, ECM fault codes are displayed on a dashboard warning light or via a diagnostic tool connected to the ECM. Most heavy-duty trucks and fleet vehicles require a specialized ECM scanner or diagnostic tool to pull the codes and read them. Many of these tools offer live data readings and even suggestions for fixing the issues.

How to Identify ECM Fault Codes

Use an ECM Scanner or Diagnostic Toolsome text

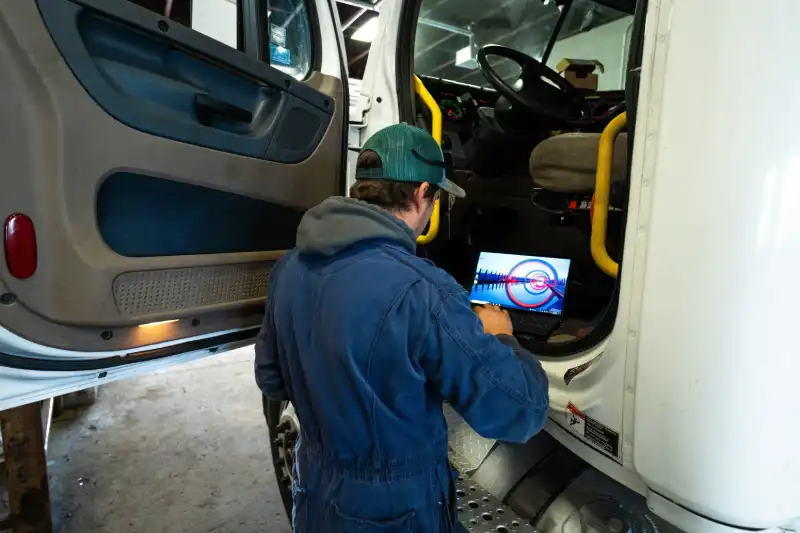

- Start by plugging an ECM scanner into the truck’s diagnostic port, typically located beneath the dashboard. Most scanners will display an alphanumeric code that correlates to a specific issue in the truck’s system.
Check the Code List or Reference Guidesome text
- Most diagnostic tools include a code library that explains each fault code. If not, refer to the ECM code list in your truck’s manual, or consult resources from manufacturers like Cummins, Caterpillar, or Detroit Diesel.
Analyze the Code Structuresome text
- ECM codes often follow a standardized structure. For instance, a code like P0107 might break down as follows:some text
  - The first letter indicates the system involved (e.g., "P" for Powertrain).
  - The next digit indicates whether it’s a manufacturer-specific code or generic.
  - The third digit represents the subsystem (e.g., fuel, ignition).
  - The last two digits specify the exact fault.
Verify Code Accuracysome text
- Sometimes, multiple codes appear at once, which can indicate either several separate issues or a chain reaction from one primary fault. Verify codes by rescanning and checking related systems.

Common ECM Fault Codes and What They Mean

Understanding what common ECM codes mean will help you troubleshoot more efficiently. Below are some frequently encountered codes in heavy-duty trucks.

1. P0101 - Mass Airflow (MAF) Sensor Issue

A P0101 code indicates a problem with the MAF sensor, which measures the amount of air entering the engine. When this sensor fails, it can lead to poor fuel economy and performance issues.

Possible Causes: Dirty or faulty MAF sensor, air intake leaks, or damaged wiring.
Solution: Clean or replace the MAF sensor and inspect air intake lines for leaks.

2. P0201 - Fuel Injector Circuit Malfunction

This code means that the ECM detects an issue in the fuel injector circuit for cylinder 1 (similar codes apply to other cylinders). Issues with fuel injectors can lead to misfires, loss of power, and increased emissions.

Possible Causes: Damaged injector, open circuit, or electrical connector issues.
Solution: Test the injector for continuity and check the wiring harness for loose connections or damage.

3. P0401 - Exhaust Gas Recirculation (EGR) Flow Insufficient

A P0401 code signifies that the EGR system isn’t circulating exhaust gas effectively, causing an increase in NOx emissions. This can also trigger a reduced power mode in some engines.

Possible Causes: Clogged EGR valve, faulty EGR sensor, or blockages in EGR passages.
Solution: Clean the EGR valve and passages, and replace the EGR valve if necessary.

4. P0540 - Intake Air Heater Relay Malfunction

Heavy-duty diesel engines often rely on intake air heaters to help with cold starts. The P0540 code means the ECM has detected an issue with the intake air heater’s relay or circuit, which can make starting difficult in cold weather.

Possible Causes: Failed relay, broken heater element, or wiring issues.
Solution: Test the relay and circuit continuity, and replace damaged components.

5. P2263 - Turbo/Supercharger Boost System Performance

A P2263 code typically shows up when there’s an issue with the turbo boost system, which may impact overall engine performance. This code can indicate that boost pressure isn’t reaching desired levels, possibly due to a leak or faulty sensor.

Possible Causes: Faulty boost sensor, boost leak, or damaged turbo actuator.
Solution: Inspect turbo piping, test the boost sensor, and replace the turbo actuator if needed.

The Importance of Resolving ECM Fault Codes Promptly

Ignoring ECM fault codes isn’t just risky—it’s costly. Failing to address these codes can lead to decreased fuel efficiency, engine strain, and even breakdowns. Unresolved codes often cause further damage, making repairs more complex and expensive.

For example, ignoring a turbo-related code like P2263 could eventually lead to turbocharger failure, which is a costly component to replace. Similarly, a P0101 MAF sensor code can cause the ECM to mismanage fuel injection, affecting both fuel efficiency and engine performance over time.

Tips for Managing ECM Fault Codes Efficiently

Schedule Regular Scans: Make it a habit to scan for fault codes regularly, even if there are no warning lights. ECMs sometimes store codes without illuminating the dash, indicating issues that might not yet be critical but still need attention.
Document Each Fault Code: When a fault code appears, document it in a logbook. Tracking codes over time can reveal patterns, helping to spot recurring issues that might indicate a deeper problem.
Stay Current with ECM Software Updates: Manufacturers periodically release ECM updates to improve performance or resolve bugs. Keeping your ECM’s software up to date ensures it’s operating with the latest standards.
Know When to Call a Professional: Some ECM codes can be tackled with basic troubleshooting, but more complex issues may require a professional’s touch. American Fleet Service in Portsmouth, VA offers comprehensive diagnostic and repair services, ensuring each fault code is resolved efficiently.

Conclusion

Understanding ECM fault codes and what they mean is invaluable for fleet managers and technicians alike. By knowing how to identify and interpret these codes, you can maintain a proactive approach, keeping your trucks on the road longer and avoiding costly repairs. For reliable diagnostics and expert advice on ECM fault codes, reach out to American Fleet Service in Portsmouth, VA—your trusted partner in keeping your fleet in peak condition.
